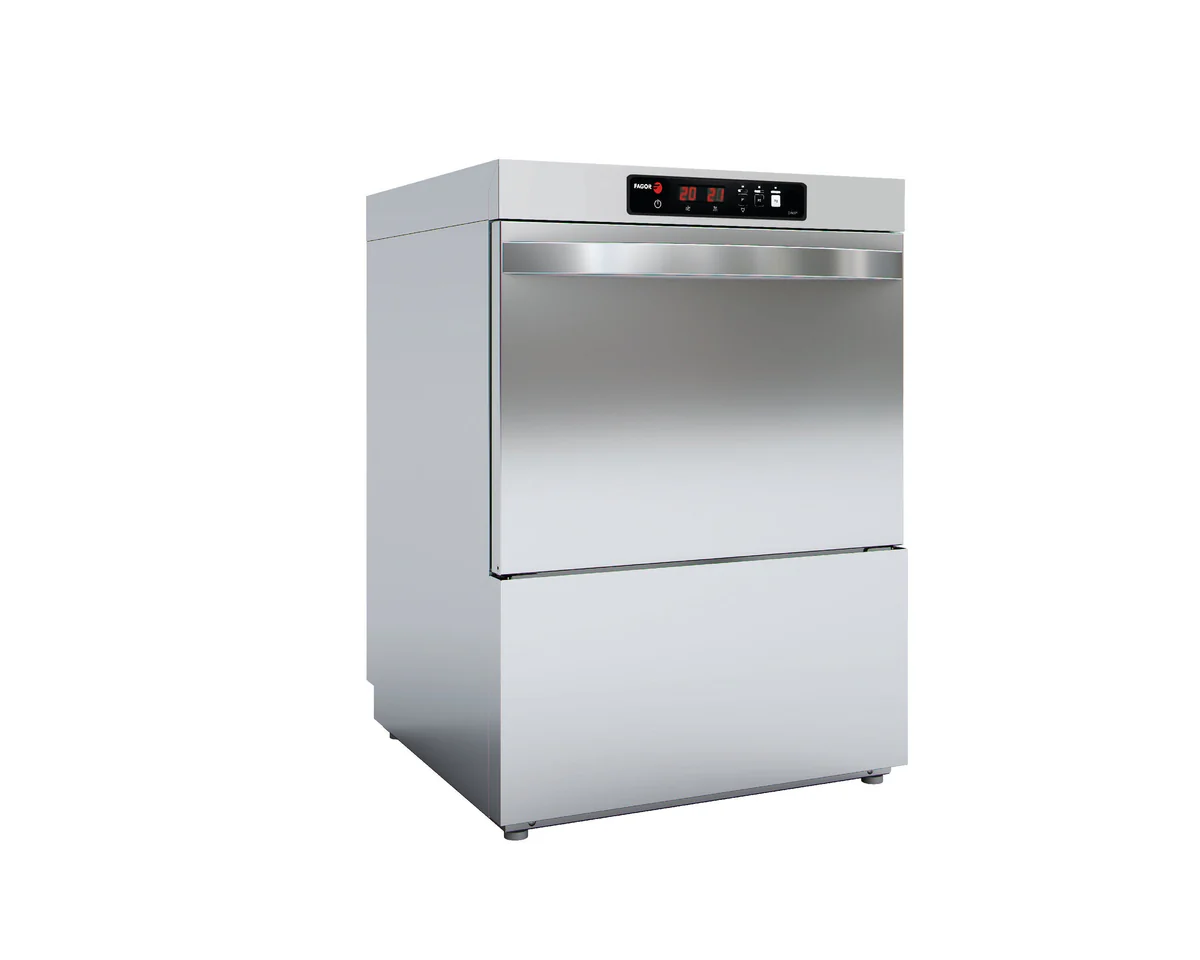

Fagor EVO-CONCEPT Undercounter Dishwasher with Drain Pump – CO-502BDD


Price Excludes GST and Delivery

Price Match



To get a quote for this item, fill in the form and click SEND



Capacity40 baskets/hour – 720 dishes/hour
Power      MultiPower (refer below)
Width (mm)600
Depth (mm)610
Height (mm)830
Weight (Kg)  60
Made InSpain


Warranty: 12 Months Parts and Labour

Dishwasher with Drain Pump – CO-502BDD

EVO CONCEPT front-loading and under counter dishwasher with double wall door and body (EFFI-SILENT), and a 3-position robust compensated door, with recessed wash tank, recessed basket guides, tray filter and wash and rinse arms in AISI-304 stainless steel.  Constant water consumption of 2.4 litres per cycle for the rinse with a mains pressure of 2 bar.

New optimised hydraulic EFFI-WASH system, with stainless steel wash arms and one powerful 0.6 kW pump, guaranteeing a top quality effective and efficient wash with an optimum Sinner circle balance. It also has a built-in rinse aid dispenser and drainage pump (B) and detergent dispenser (DD) fitted at factory or supplied in kit form.

Full Double skin body to isolate machine’s noise from the environment . The door has double skin with special pressed isolation material, and stamped finishing to improve noise isolation and to keep the heat inside the machine. Rock counter balanced door. Double spring and stainless steel hinge system. The case allows the placement of the machine under surfaces of 850 mm height.

  • Hourly production: 40 baskets/hour – 720 dishes/hour
  • Clearance (max ware height): 380 mm
  • Valid for GN-1/1 trays
  • Electronic control
  • Wash cycles: 90″-180″
  • Made of stainless steel
  • Double rotating wash and rinse systems, above and below, made of stainless steel
  • Tray filters on the tank, made of AISI-304 stainless steel
  • Supplied with 1 dish rack and 1 glass rack
  • Power: Multipower 2,4 / 3,4 / 4,3 / 22.32 MJ; 15A
  • Wash pump: 600 W
  • Drain pump: 30 W. Drainage cycle
  • Tank with 2.8 kW heating element
  • Tank capacity: 20 litres
  • Boiler with multipower heating elements: 1,8 / 2,8 / 3,7 / 5,6 kW, 15A
  • Boiler capacity: 7 litres
  • Water consumption: 2.4 litres/rinse
  • Thermostatic temperature control: washing at 60º C and rinsing at 90º C
  • Thermostop
  • Security thermostats
  • Built-in automatic rinse dispenser
  • Built-in detergent doser
  • Built-in non-return valve
  • Safety magnetic switch for door opening
  • Adjustable legs
  • WaterMark approved
  • Water protection rating: IPX4
  • Baskets equipment: 1 x CT-10, 1 x CP-16/18 and 2 cutlery containers
  • Dishwasher with Drain Pump – CO-502BDD
